Sirman TC32 Colorado Mincer - 400kg/hr with predisposition for Format M Hamburger Mould - 213292G02F

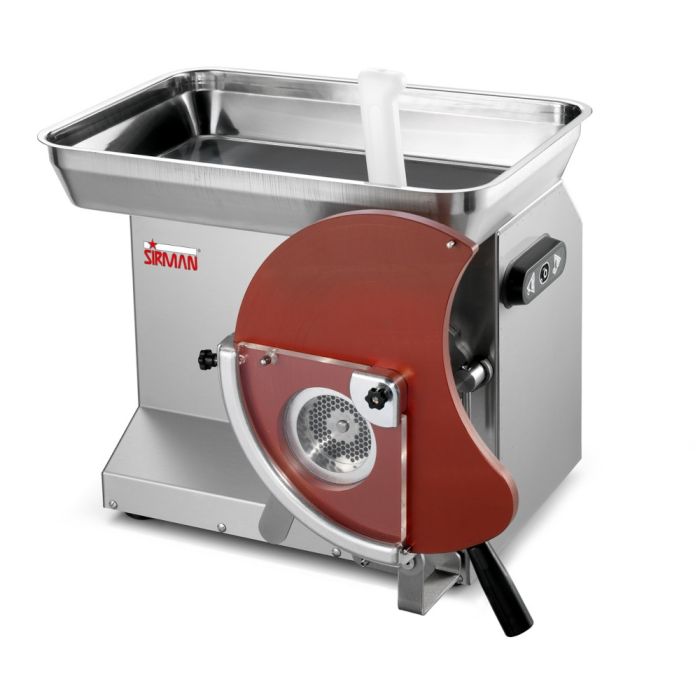

The Sirman TC 32 COLORADO M meat mincer features robust AISI 304 stainless steel construction, ensuring both durability and a sleek appearance. It is equipped with powerful IP 55 insulated and fan-cooled motors designed for continuous use and high performance. The mincer's endless screw motor-reducer operates in an oil-bath, contributing to its long service life and reliability. Additionally, the motor-reducer includes a double seal for extended, trouble-free operation.

This model includes a convenient no-tools head lock mechanism and a stainless steel mincing head designed for high-yield production. The mincing head is fully removable, making cleaning straightforward and efficient. The TC 32 COLORADO M is equipped with IP 54 protected, 24 V controls for safe and reliable operation.

The TC 32 COLORADO M is compatible with the FORMAT M hamburger mould system, which requires separate purchase of the Hamburger Mould attachment device along with the required choice of mould. This system is versatile and offers a range of optional moulds, including:

Round �� 100 mm - h. 14 mm

Round �� 110 mm - h. 14 mm

Oval 96x115 mm - h. 14 mm

Square 100x100 mm - h. 14 mm

Rectangle 100x125 mm - h. 14 mm

Leg of chicken 90x117 mm - h. 14 mm

Meatballs �� 40 mm - h. 14 mm (x4)

Adjustable from round to oval - h. 14 mm

The standard configuration of the TC 32 COLORADO includes stainless steel IP 67 protected controls for additional durability and a special overload protection for single phase machines. This comfiguration is in single-phase (1840 watts, 2.5 horsepower), it delivers an impressive output of up to 400 kg/h. The standard plate size is 6 mm in diameter, with additional plate sizes available upon request.

• AISI 304 stainless steel construction.
• Powerful IP 55 insulated and fan-cooled motors for continuous use.
• Endless screw motor-reducer running in an oil-bath enables a long service life
• Motor-reducer equipped with a double seal for long, trouble-free service.
• Convenient, no-tools head lock mechanism.
• Stainless steel mincing head carefully designed for high yeld production, completely removable for ease of cleaning.
• IP 54 protected, 24 V controls

Model

TC 32 COLORADO H

Voltage

230 Volts

Watts

1840 watts

Plug Supplied

Yes

Plug Type

10A plug

Plate Size

�� 6mm

Production Capacity

400 kg/hr

Throat Size

32

Width (mm)

610

Depth (mm)

465

Height (mm)

445

Warranty

2 years parts and labour

Inclusions

Predisposition to Format M Hamburger system PCB Overcurrent Protection
