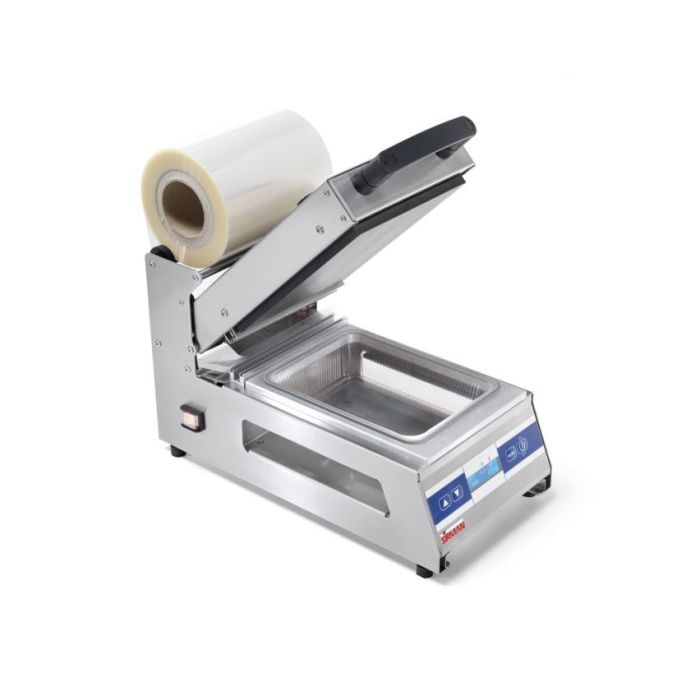

Sirman Sigix M20 Tray Sealing machine - 382030210002-1

The Sirman Sigix M20 is a practical and robust manual tray sealer designed for efficiency and durability. Constructed with an AISI 304 stainless steel body, this machine offers both strength and corrosion resistance. It features an electronic controller with precise temperature and preheating adjustments, allowing for accurate sealing operations.

The Sigix M20 has a sealing time of just 4 seconds, making it a quick and effective solution for high-volume tray sealing. It accommodates trays up to a maximum size of 260 x 190 mm and can handle a film width of up to 200 mm. The machine also includes custom dies made to specific drawings, ensuring flexibility for various tray sizes and shapes.

The sealing plate is coated with Teflon and made from aluminum, which enhances durability and ease of cleaning. Additionally, the Sigix M20 can handle trays with a maximum height of 120 mm.

Optional accessories include film rolls and standard trays in sizes such as 137 x 95 mm (height 63 mm), 190 x 137 mm (height 72 mm), 230 x 190 mm (height 65 mm), and 260 x 190 mm (height 65 mm). Custom molds for these standard tray sizes are also available.

Specifications for the Sigix M20 include a power rating of 900 watts, a power source of 1ph, and a maximum film roll width of 200 mm.

• A practical and robust manual tray sealer
• AISI 304 stainless steel body
• Electronic controller with temperature and preheating controls
• Tray count
• Sealing time: 4 seconds
• Maximum tray size: 260x190 mm
• Teflon coated aluminium sealing plate
• Maximum film width: 200 mm

Model

SIGIX M20

Voltage

230 Volts

Watts

900W

Plug Supplied

Yes

Plug Type

10A plug

Width (mm)

257

Depth (mm)

525

Height (mm)

306

Warranty

2 Years Parts and 2 Years Labour
