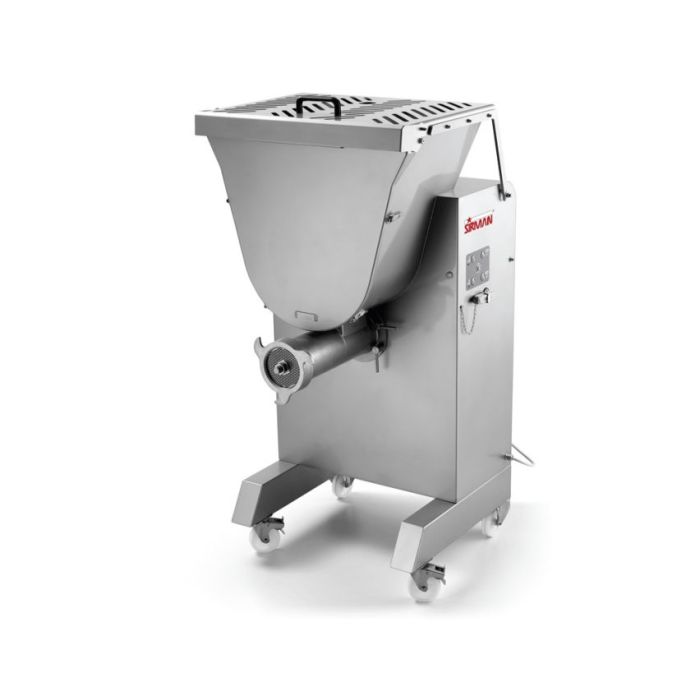

Sirman Master 90 Y12 7HP Mincer Mixer - 90kg / 120L Capacity - 40849571J1233-1

The MASTER 90 Y12 Grinder and Mixer is a high-performance unit crafted from durable AISI 304 stainless steel, ensuring both robustness and ease of cleaning as it can be sprayed down. The machine features two independent motors: the TC motor, which delivers 5145 watts (7 HP) for grinding, and the IP motor, providing 1102 watts (1.5 HP) for mixing. It operates on a versatile power source, supporting both single-phase and three-phase connections.

This model includes a large tank with a capacity of 90 kg or 120 liters, accommodating substantial batches. The standard plate size is 4.5 mm in diameter, and the machine operates at 186 rpm for the TC motor and 30 rpm for the IP motor, providing a high output ranging from 1000 to 1200 kg per hour.

Safety and ease of use are emphasized with features such as a safety microswitch on the meat mixer cover, air pistons for automatic cover opening, and IP 67 stainless steel controls. The grinder also includes a reverse function for added versatility.

The grinding set, made entirely of AISI 304 stainless steel, is designed for high performance and includes a stainless steel drive pin and a tempered steel worm pin. Both the grinding set and mixing arm can be disassembled easily without tools, thanks to a patented plate detection system designed for 42mm plates.

Included as standard are a self-sharpening stainless steel knife, a 6mm stainless steel plate, a floor support with stainless steel wheels and a brake, and a worm and plate removal tool.

Optional accessories enhance the machine���s functionality, including a stainless steel splash guard and a safety device for plates larger than ��8mm. Additionally, there are options for a stainless steel 1/2 or full unger grinding set.

For precise control, the MASTER 90 Y12 offers a timer function and a reverse function with a timer for the meat mixer. Optional add-ons include pedal controls and attachments for hamburger presses, available in both semi-automatic (Format S) and automatic (Format A) confrations.

• AISI 304 stainless steel construction. Can be sprayed.
• 2 indipendent IP x5 motors for grinder and mixer
• Oil-bath, waterproof angular gear box
• Safety microswitch on meat mixer cover
• Air pistons open the cover
• IP 67 stainless steel controls (reverse available for grinder)
• Grinder set completely made of AISI 304 stainless steel
• Designed for high performance
• Tempered steel worm pin
• Grinding set and mixing arm can be easily disassembled without tools
• Exclusive, patented plate detection system on 42
• Stainless steel self-sharpening knife and 6 mm plate
• Floor support with stainless steel wheels and brake
• Worm and plate removing tool

Model

MASTER 90 Y12 FC

Voltage

400 Volts

Watts

Mincing Head 5145w | Mixing Function 1102w

Plug Supplied

No

Plug Type

Lead only

Litre Capacity

120L

Plate Size

�� 4.5mm

Production Capacity

1000-1200 kg/hr

Finished Quantity

90kg

RPM

Mincer 186 RPM | Mixer 30 RPM

Width (mm)

746

Depth (mm)

805

Height (mm)

1489

Warranty

2 years parts and labour

Inclusions

Full Control System
