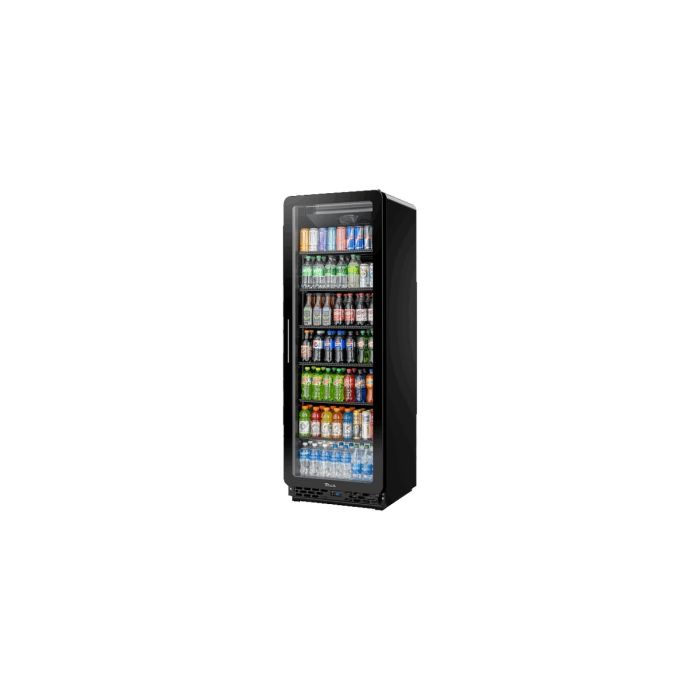

True Refrigeration Contemporary Visual Merchandiser Refrigerator, 1 Glass Swing Door - CVM-20-HC

Name: True Refrigeration Contemporary Visual Merchandiser Refrigerator, 1 Glass Swing Door - CVM-20-HC
Brand: True Refrigeration
SKU: CVM-20-HC
Price: 5673.21 AUD
Availability: InStock

Special Price $5,673.21 $5,157.46 Regular Price $7,367.80 $6,698.00 SAVE $1,694.59 SAVE $1,540.54

True Refrigeration See all True Refrigeration products

True Refrigeration Contemporary Visual Merchandiser Refrigerator, 1 Glass Swing Door - CVM-20-HC is a commercial upright fridge supplied under the Bromic manufacturer range. Model: CVM-20-HC. Key operating details include temperature range 0.5 : 3.3°C, R290 refrigerant, 484 L gross volume.

The specifications below are sourced from the official Australian True Refrigeration product documentation. Confirm site access, electrical requirements and clearances before installation.

Dimensions

External Width (mm)	686
External Depth (mm)	623
External Height (mm)	1994
Exclusions	Depth does not include 16 mm for rear mechanical components.
Net Volume (Litres)	-
Gross Volume (Litres)	484
Display Area (m 2 )	0.89
Supplied Shelves	6
Shelf Size (L x D mm)	571 X 464
Internal Net Height (mm)	1612
Unpackaged Weight (kg)	134
Packaged Weight (kg)	146
Packaged Dimensions (W x D x H mm)	813 x 775 x 2134
Supplied with	Leg Levelers

Build

Door Description	Double Pane Thermal Insulated Edge Glass Curved Swing Door
Door Opening	Right (standard) or Left.
Exterior Construction	Black Powder Coated Cold Rolled Steel
Interior Construction	Black Aluminum Interior Liner with Stainless Steel Floor
Air Intake Position	Front
Ventilation Position	Rear
Clearance Required	26 mm rear, zero sides
Cord Length (Meters)	3.05
Internal Lighting	LED
Standard w/ Locks	Not available.

Technical

Temperature Range	0.5 : 3.3°C
Refrigerant	R290
Voltage/Frequency/Phase	220-240V/50-60Hz/1
Amps	1.5
Watts	302
Climate Class	CC2
Operating Statement	Tested according to EN ISO 22044:2022 for commercial beverage coolers.
Test Standard	EN22044-2022
EEC	C
Energy Efficiency Index	28.7
Defrost Type	Auto
Energy Consumption (kWh/24h)	1.484
Energy Consumption (kWh/Annum)	568
Temperature Class	K2

Official Product Specification Sheet

View or download the True Refrigeration PDF for model CVM-20-HC.

View Specification PDF

SKU	CVM-20-HC
Dimensions	686 × 623 × 1994 mm (W × D × H)
Power	220-240V/50-60Hz/1, 1.5 A
Capacity	484 L gross
Warranty	5 Years Bromic Extra Care Warranty - Labour and Parts
