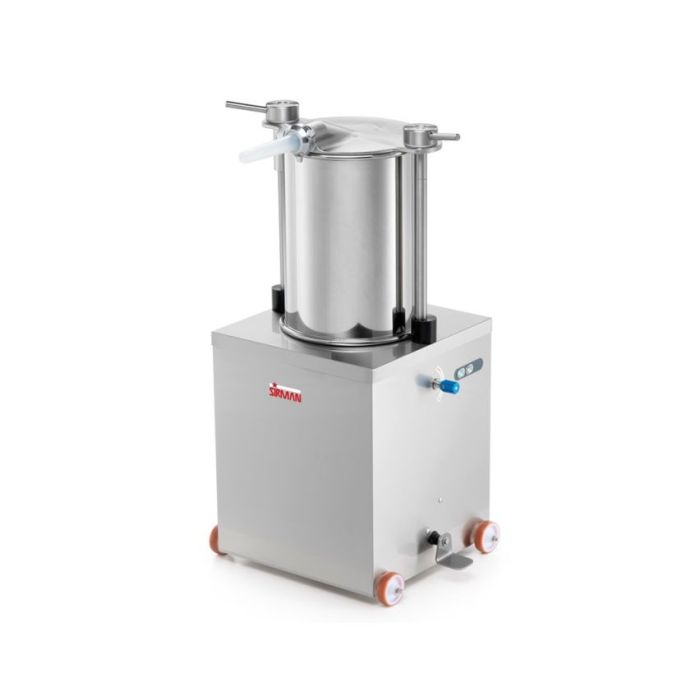

Sirman IS IDRA 50 400V Hydraulic Sausage Filler - 55L Capacity - 40155003

Introducing the Sirman IS 50 IDRA, a hydraulic vertical sausage filler engineered for both efficiency and durability. This model features a powerful hydraulic system operating at 120 bars, providing reliable and effective performance. Constructed entirely from stainless steel, the IS 50 IDRA is designed for longevity and ease of maintenance, with the ability to be fully disassembled without tools for straightforward cleaning.

The IS 50 IDRA includes advanced features typically found in higher-end models. It boasts a fully stainless steel cover and piston, with silicone gaskets inside the cylinder to enhance sealing and extend gasket life. The hydraulic cylinder is hermetically protected, and the stainless steel piston rod ensures smooth operation. The cylinder is polished and rounded, allowing for effortless operation without directional constraints.

Equipped with a powerful and quiet ventilated motor that operates at 2,800 rpm, the IS 50 IDRA offers immediate action and consistent performance. It includes an automatic piston return function that engages when the motor stops. For precise control, the unit features 24V controls and a high-precision oil flow controller. Standard features also include rubber wheels for ease of mobility and an oil tank with a level gauge for easy monitoring.

Specifications for the IS 50 IDRA are as follows: it has a power output of 560 watts (0.75 HP), a cylinder capacity of 55 liters, and a cylinder length of 520 mm with a diameter of 380 mm. The piston stroke measures 440 mm, with a minimum forward speed of 6', a maximum forward speed of 75, and a backward speed of 32. The unit also comes with exhaust funnels available in diameters of 10 mm, 18 mm, and 25 mm. The Sirman IS 50 IDRA combines robust performance with practical features, making it an excellent choice for high-capacity sausage filling.

• Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system that operates at a pressure of 120 bars.
• Manufactured entirely from stainless steel, the machine can be completely disas-sembled for easy cleaning without requiring tools.
• Fully stainless steel cover and piston
• Silicone gaskets that act inside the cylinder for better seal and longer life of the gasket
• Hermetic protection of the hydraulic cylinder
• Stainless steel piston rod
• Polished and rounded stainless steel cylinder, without obligatory direction
• Powerful and silent ventilated motor operating at 2,800 rpm with immediate action
• Automatic piston return when motor stops
• IP 67 stainless steel controls
• High-precision oil flow controller
• Standard rubber wheels
• Oil tank with level gauge

Model

IS V 50 IDRA 3PH

Voltage

400 Volts

Watts

560w

Plug Supplied

No

Plug Type

Lead only

Litre Capacity

55L

Cylinder Capacity

55L

Cylinder Length

520mm

Width (mm)

730

Depth (mm)

550

Height (mm)

1250

Warranty

2 years parts and labour
