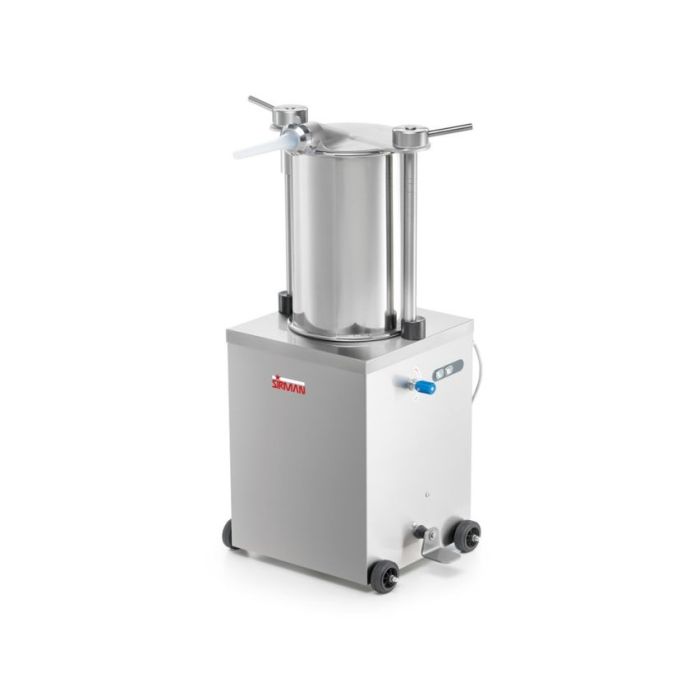

Sirman IS IDRA 35 400V Hydraulic Sausage Filler - 35L Capacity - 40153503

Introducing the Sirman IS 35 IDRA, a hydraulic vertical sausage filler designed for high efficiency and ease of maintenance. This model features a powerful hydraulic system operating at 120 bars, ensuring dependable performance. The IS 35 IDRA is constructed entirely from stainless steel, making it highly durable and easy to clean. The machine can be fully disassembled without the need for tools, simplifying maintenance tasks.

The IS 35 IDRA boasts advanced features typically seen in premium models. It includes a fully stainless steel cover and piston, along with silicone gaskets inside the cylinder that enhance sealing and extend gasket life. The hydraulic cylinder is hermetically protected, and the piston rod is made of stainless steel. The polished, rounded cylinder allows for smooth operation without directional constraints.

Equipped with a robust and quiet ventilated motor that runs at 2,800 rpm, the IS 35 IDRA provides immediate action and consistent performance. It features an automatic piston return function that activates when the motor stops. For precise control, the unit includes 24V controls and a high-precision oil flow controller. Standard features also include rubber wheels for easy mobility and an oil tank with a level gauge for convenient monitoring.

Specifications for the IS 35 IDRA include a power output of 560 watts (0.75 HP), a cylinder capacity of 35 liters, and a cylinder length of 460 mm with a diameter of 320 mm. The piston stroke measures 380 mm, with a minimum forward speed of 2'02"", a maximum forward speed of 51"", and a backward speed of 32"". The unit also features exhaust funnels available in diameters of 10 mm, 18 mm, and 25 mm. The Sirman IS 35 IDRA combines high-performance capabilities with practical features, making it an ideal choice for efficient sausage filling.

• Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system that operates at a pressure of 120 bars.
• Manufactured entirely from stainless steel, the machine can be completely disas-sembled for easy cleaning without requiring tools.
• Fully stainless steel cover and piston
• Silicone gaskets that act inside the cylinder for better seal and longer life of the gasket
• Hermetic protection of the hydraulic cylinder
• Stainless steel piston rod
• Polished and rounded stainless steel cylinder, without obligatory direction
• Powerful and silent ventilated motor operating at 2,800 rpm with immediate action
• Automatic piston return when motor stops
• IP 67 stainless steel controls
• High-precision oil flow controller
• Standard rubber wheels
• Oil tank with level gauge

Model

IS V 35 IDRA 3PH

Voltage

400 Volts

Watts

560w

Plug Supplied

No

Plug Type

Lead only

Litre Capacity

35L

Cylinder Capacity

35L

Cylinder Length

460mm

Width (mm)

640

Depth (mm)

480

Height (mm)

1160

Warranty

2 Years Parts and 2 Years Labour
