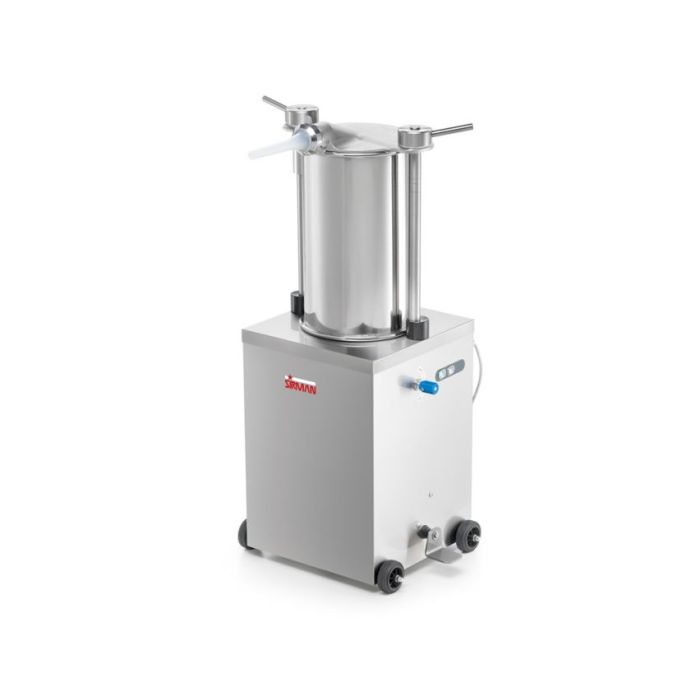

Sirman IS IDRA 25 Hydraulic Sausage Filler - 25L Capacity - 40153002

Introducing the Sirman IS 25 IDRA, a hydraulic vertical sausage filler designed for both efficiency and ease of use. Featuring a powerful hydraulic system that operates at 120 bars, this model ensures reliable and effective performance. Constructed entirely from stainless steel, the IS 25 IDRA is built for durability and can be fully disassembled for simple, tool-free cleaning.

This filler is equipped with several advanced features typically found in higher-end models. It includes a fully stainless steel cover and piston, and uses silicone gaskets inside the cylinder to improve sealing and extend the lifespan of the gaskets. The hydraulic cylinder is hermetically protected, while the stainless steel piston rod ensures longevity and smooth operation. The polished, rounded cylinder design allows for effortless operation without mandatory directional constraints.

The IS 25 IDRA is powered by a robust and quiet ventilated motor that operates at 2,800 rpm, providing immediate action and consistent performance. It features an automatic piston return that engages when the motor stops. For precise control, the unit includes 24V controls and a high-precision oil flow controller. Standard features such as rubber wheels enhance mobility, and an oil tank with a level gauge facilitates easy monitoring.

Specifications for the IS 25 IDRA include a power output of 560 watts (0.75 HP), a cylinder capacity of 25 liters, and a cylinder length of 460 mm with a diameter of 260 mm. The piston stroke measures 380 mm, with a minimum forward speed of 2'02"", a maximum forward speed of 51"", and a backward speed of 32"". The unit also includes exhaust funnels available in 10 mm, 18 mm, and 25 mm diameters. The Sirman IS 25 IDRA combines practical features with advanced technology, making it an excellent choice for high-efficiency sausage filling.

• Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system that operates at a pressure of 120 bars.
• Manufactured entirely from stainless steel, the machine can be completely disas-sembled for easy cleaning without requiring tools.
• Fully stainless steel cover and piston
• Silicone gaskets that act inside the cylinder for better seal and longer life of the gasket
• Hermetic protection of the hydraulic cylinder
• Stainless steel piston rod
• Polished and rounded stainless steel cylinder, without obligatory direction
• Powerful and silent ventilated motor operating at 2,800 rpm with immediate action
• Automatic piston return when motor stops
• IP 67 stainless steel controls
• High-precision oil flow controller
• Standard rubber wheels
• Oil tank with level gauge

Model

IS V 25 IDRA

Voltage

230 Volts

Watts

560w

Plug Supplied

Yes

Plug Type

10A plug

Litre Capacity

25L

Cylinder Capacity

25L

Cylinder Length

460mm

Width (mm)

565

Depth (mm)

450

Height (mm)

1160

Warranty

2 Years Parts and 2 Years Labour
