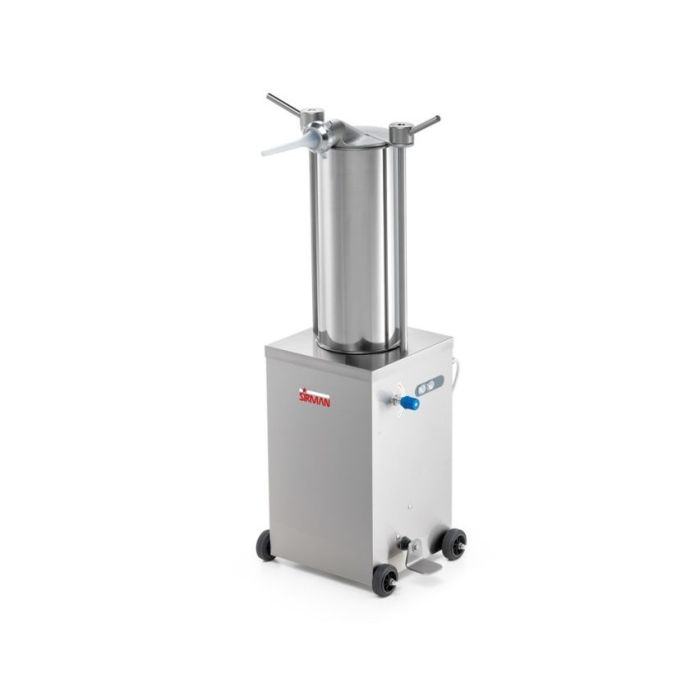

Sirman IS IDRA 15 Hydraulic Sausage Filler - 15L Capacity - 40151502

Introducing the Sirman IS 15 IDRA, a hydraulic vertical sausage filler designed for simplicity and functionality. This model is equipped with a powerful hydraulic system that operates at a pressure of 120 bars, delivering reliable and efficient performance. Constructed entirely from stainless steel, the IS 15 IDRA is built for durability and can be fully disassembled for easy, tool-free cleaning.

The IS 15 IDRA features high-end characteristics typically found in more advanced models. It includes a fully stainless steel cover and piston, along with silicone gaskets inside the cylinder to ensure a better seal and extend gasket life. The hydraulic cylinder is hermetically protected, and the piston rod is made of stainless steel. The cylinder itself is polished and rounded, offering smooth operation without mandatory directional constraints.

The machine is powered by a robust and quiet ventilated motor that operates at 2,800 rpm, providing immediate action. It includes an automatic piston return feature that engages when the motor stops. For precise control, the IS 15 IDRA is equipped with 24V controls and a high-precision oil flow controller. Standard features also include rubber wheels for easy mobility and an oil tank with a level gauge for convenient monitoring.

Specifications for the IS 15 IDRA include a power output of 560 watts (0.75 HP), a cylinder capacity of 15 liters, and a cylinder length of 495 mm with a diameter of 200 mm. The piston stroke measures 430 mm, with a minimum forward speed of 2'11"", a maximum forward speed of 59, and a backward speed of 35. The unit also includes exhaust funnels available in diameters of 10 mm, 18 mm, and 25 mm. The Sirman IS 15 IDRA combines practical design with advanced features, making it an ideal choice for high-efficiency sausage filling.

• Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system that operates at a pressure of 120 bars.
• Manufactured entirely from stainless steel, the machine can be completely disas-sembled for easy cleaning without requiring tools.
• Fully stainless steel cover and piston
• Silicone gaskets that act inside the cylinder for better seal and longer life of the gasket
• Hermetic protection of the hydraulic cylinder
• Stainless steel piston rod
• Polished and rounded stainless steel cylinder, without obligatory direction
• Powerful and silent ventilated motor operating at 2,800 rpm with immediate action
• Automatic piston return when motor stops
• 24V controls
• High-precision oil flow controller
• Standard rubber wheels
• Oil tank with level gauge

Model

IS V 15 IDRA

Voltage

230 Volts

Watts

560W

Plug Supplied

Yes

Plug Type

10A Plug

Litre Capacity

15L

Cylinder Capacity

15L

Cylinder Length

495mm

Width (mm)

490

Depth (mm)

370

Height (mm)

1200

Warranty

2 Years Parts and 2 Years Labour
