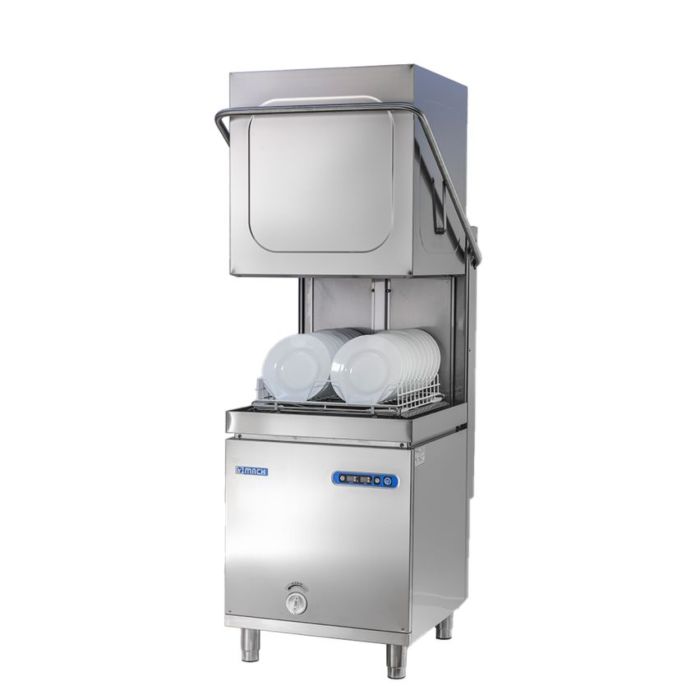

Mach HT 635.23AT Premium line wide body (63cm x 63cm Basket) Pass through washer - HT 635.23 AT

The Mach HT635.23AT Premium Line passthrough dishwasher is designed for exceptional durability and efficiency, featuring a 100% stainless steel construction with no plastic parts. Its double-walled, fully insulated body, including an insulated double wall hood, minimizes heat loss and enhances energy efficiency. The machine boasts a 32-liter wash tank with molded rounded corners for easy cleaning and reduced debris buildup. Full-width wash tank filters and indirect tank water heating���where the heating element is separate from the tank���ensure effective operation. Each cycle uses 3.8 liters of water, with a partial water change system that automatically drains approximately 3.8 liters of dirty water between the wash and rinse phases.

The HT635.23AT is equipped with a TOUCH control panel offering five preset wash cycles ranging from 90 to 210 seconds, with a high capacity of 880 to 374 pieces per hour depending on the cycle duration. It supports a useful washing height of 50 cm, accommodating dishes up to 63x63 cm in size, and includes two plate baskets, a flat basket, and two cutlery holders. The dishwasher features independent stainless steel lower and upper washing and rinsing arms for thorough cleaning.

To enhance user convenience, the HT635.23AT includes several built-in components: a rinse-aid pump, a detergent pump, and a drain pump with a filter. It also incorporates a built-in rinse booster pump, an insulated atmospheric rinse tank made from AISI 304L stainless steel, and a timed manual cold rinse option. The machine features a self-cleaning cycle (CLN) and an automatic start function upon hood closing. It is powered by a 1.5 kW washing pump, a 9 kW boiler heating element, and a 4.5 kW tank heating element, Operating with a noise level of less than 70 dBA, the HT635.23AT provides quiet and efficient performance. Real-time digital displays show boiler and tank temperatures and a countdown timer for each cycle, ensuring ease of use.

With its robust build, efficiency, and advanced features, the Mach HT635.23AT exemplifies MACH���s commitment to high-quality, professional-grade passthrough dishwashing solutions.

• Robust long life machine.100% Stainless Steel construction. No plastic parts.
• Double wall fully insulatied body.
• Insulated double wall hood
• Moulded double wall wash tank with rounded corners
• Full-width wash tank filters
• The tank water heating is indirect (heating element is not inside the tank)
• 32 litre tank capacity
• 15 litre boiler capacity
• Water consumption per cycle 3.8 litres
• Useful washing height 41 cm, dish ?44 cm
• Magnetic microswitch to cut out operation of the appliance when door is opened.
• Square basket 63x63 cm basket compatability. (supplied with 2 plate baskets, 1 flat basket, 2 cutlery holders)
• TOUCH control panel with 5 preset wash cycle times.
• Displays show the boiler and tank temperature.
• Countdown of the washing cycle underway in minutes and seconds.
• Self-cleaning cycle (CLN)
• Washing cycle time 90-120-150-180-210 seconds (capacity 880 / 374 pc/h).
• Boiler and tank heating through thermostatically protected armoured heating elements (in exchange).
• Independent stainless steel lower/upper washing and rinsing arms.
• Built-in rinse-aid pump. Built in detergent pump. Built in Drain pump with filter. Built in Rinse Booster Pump and atmospheric boiler
• Built-in insulated atmospheric rinse tank made in AISI 304L stainless steel
• Built in Timed manual Cold Rinse
• Partial water change each cycle - automatic drain of approx. 3.8 litres of (dirty) water between wash and rinse phase.
• Can be used in straight-line and corner installations
• Automatic start on hood closing

Model

HT 635.23AT

Voltage

415V 3N/50Hz

Watts

10.45 kw

Plug Supplied

No

Booster Pump Power

0.30 Kw

Washing pump power

1.5 kw

Boiler Heating element

9 kw

Tank Heating element

4.5 Kw

Noise level at 1 mt.

< 70 dbA.

Water consumption per cycle

3.8 litres

Washing cycle time

90-120-150-180-210 seconds

Capacity

capacity 880 / 374 pc/h

Tank capacity

32 litre

Boiler capacity

15 litre

Washing chamber height

50 cm

Width (mm)

725

Depth (mm)

805

Height (mm)

1550 closed hood / 2098 open hood
