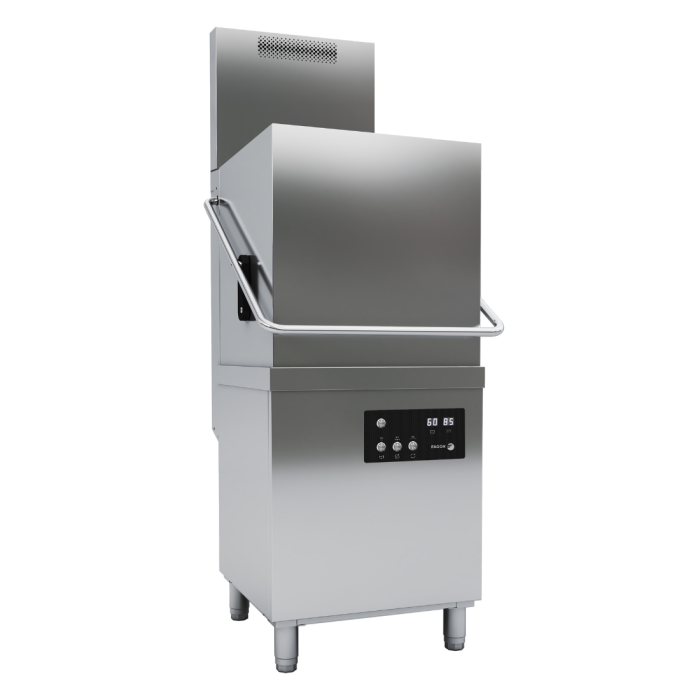

Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

SEED-certified ventless installation – no external kitchen exhaust hood required.*

Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump, and detergent dispenser

Key Features

• Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
• Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
• Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
• No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
• Hourly production: 40 baskets/ hour
• Clearance (max ware height): 450mm
• Electronic control
• Wash cycles: 55”/75”/120
• Double rotating wash and rinse systems, made of AISI-304 stainless steel
• Wash pump, 750W each
• Drain pump: 100W drainage cycle
• Tank with 3 kW heating power
• Tank capacity: 33 litres
• Water consumption: 2.2 litres/cycle
• Thermostatic temperature control: washing at 60℃ and rinsing at 85℃
• Two-digit LED displays
• Hydraulic rinse aid dispenser
• Dual-flow wash pump with soft-start
• Double-stage filtration system
• Dual-flow wash pumps
• A magnetic micro switch to stop the cycle in case of accidental opening of the hood
• Adjustable legs
• Supplied with 1 dish basket, 1 glass basket, and 1 cutlery container
• Watermark approved
• Can be converted to single-phase
• Precision of working temperatures
• Temperature control by electronic probes
• Configurable control
• I-ERROR DIAGNOSIS: Error identification on screen
• Basket: 500x500
• Drain pump

*Subject to compliant background ventilation, site mechanical approval, Fagor commissioning and maintenance requirements.

2-Year Parts and Labour Warranty
