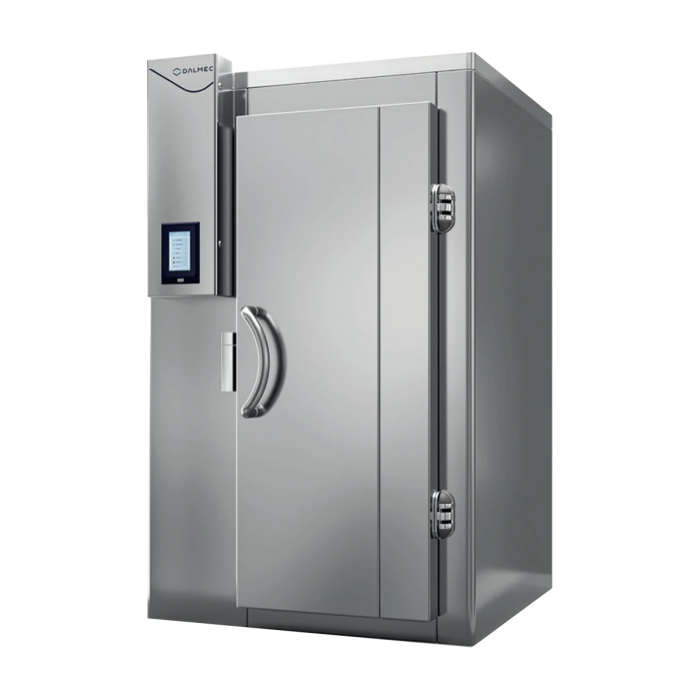

Dalmec 40 Tray Roll-in Blast Freezer – 2 Trolley 170 kg Capacity
Special Price $56,144.00 $51,040.00 Regular Price $63,800.00 $58,000.00 SAVE $7,656.00 SAVE $6,960.00
Dalmec
Dalmec manufactures professional refrigeration for foodservice, bakery, pastry, gelato and pizza production, including blast chillers, retarder provers, cabinets and refrigerated counters.
See all Dalmec productsDalmec 40 Tray Roll-in Blast Freezer – 2 Trolley 170 kg Capacity is a blast chillers from Dalmec for professional foodservice applications. Model: PBCG20A17MD0.
Features
Climate Class 5 Manual Defrost Adjustable Ventilation R452a Cooling Gas AISI 304 Stainless Steel Non-Reversible Door AISI 304 Adjustable S/S Feet 100mm Insulation Thickness Touch Screen Wi-Fi
Product Specifications
| Model | PBCG20A17MD0 |
|---|---|
| Chilling performance (kg) | 170kg (+90 °C/+3 °C) |
| Chilling cycle time (min) | 90 min (+65 °C/+10 °C) |
| Freezing performance (kg) | 120 kg (+90 °C/-18 °C) |
| Freezing cycle time (min) | 240 min (+65 °C/-18 °C) |
| Cell working temperature (°C) | (-40/+65) °C |
| Cooling Output (W) | 20000 / 8400 Watts |
| Power Consumption (W) | 7500 Watts |
| Compressor Type | Ventilated Monoblock |
| Condensate Evaporation | Condensate water evaporation by means of anti-corrosion coil in low carbon AISI 316. |
| Refrigerant Gas | R452a |
| Defrost Type | Hot Gas |
| Energy Class | A |
| Climate Class | 5 (+40°C / 40% R.H.) |
| Energy consumption (kWh/kg) | 0.08 / 0.24 |
| Global Warming Potential (GWP) | 2141 |
| Internal Material | AISI 304 Stainless Steel |
| External Material | AISI 304 Stainless Steel |
| Internal Corners | Rounded corners inside for easy and optimal cleaning. |
| Floor Construction | AISI 304 stainless steel 100mm plinth |
| Insulation Thickness (MM) | 100mm |
| Insulation Material | HFO Polyurethane (No CFC, no HCFC) |
| Door Seal Construction | Seven-chamber magnetic gasket, easily removable |
| Door Hinge Construction | Standard Left, non-Reversible |
| Controller Construction | 7” capacitive touch screen |
| Alarm | Visual And Audible |
| Noise (DB) | <80 |
| Voltage | 400 Volts |
| Amperage | 14 Amps |
| Plug Supplied | No |
| Temperature | (-40/+10) °C |
| Tray Capacity | 2 x Trolleys 600x400 |
| Packaging Width | 2220 |
| Packaging Height | 1220 |
| Packaging Depth | 1440 |
| Width (mm) | 1400 |
| Depth (mm) | 1300 |
| Height (mm) | 2250 |
| Warranty | 2 years |
| Inclusions | Wi-Fi kit Core probe Openable control panel USB connector for data download in compliance with HACCP regulations |
| SKU | PBCG20A17MD0-1 |
| Dimensions | 1400(W) x 1300(D) x 2250(H) mm |
| Power | 400 Volts |
| Capacity | Tray Capacity: 2 x Trolleys 600x400 |
| Warranty | 2 YEARS |
