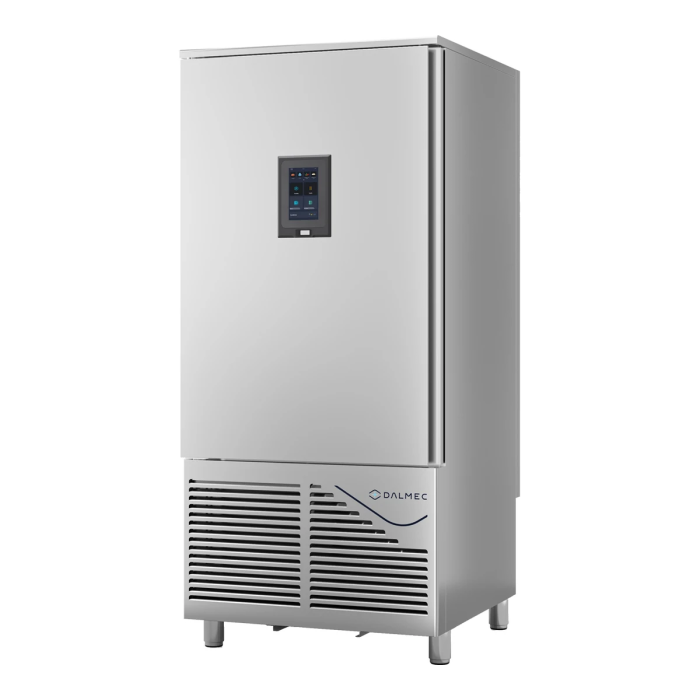

Dalmec 15 Tray Blast Freezer – 70 kg Capacity
Special Price $17,424.00 $15,840.00 Regular Price $19,800.00 $18,000.00 SAVE $2,376.00 SAVE $2,160.00
Dalmec
Dalmec manufactures professional refrigeration for foodservice, bakery, pastry, gelato and pizza production, including blast chillers, retarder provers, cabinets and refrigerated counters.
See all Dalmec productsDalmec 15 Tray Blast Freezer – 70 kg Capacity is a blast chillers from Dalmec for professional foodservice applications. Model: PBCG156HG.
Features
Climate Class 5 Manual Defrost Adjustable Ventilation R455a Cooling Gas AISI 304 Stainless Steel AISI 304 Adjustable S/S Feet 60mm Insulation Thickness Touch Screen Wi-Fi Water Drain INOX Grids Removable Condenser Filter Internal Sterilization
Product Specifications
| Model | PBCG156HG |
|---|---|
| Gross Volume | 255 Litres |
| Net / Gross Weight | 215 / 233kg |
| Chilling performance (kg) | 70kg (+90 °C/+3 °C) |
| Chilling cycle time (min) | 96 min (+65 °C/+10 °C) |
| Freezing performance (kg) | 45 kg (+90 °C/-18 °C) |
| Freezing cycle time (min) | 262 min (+65 °C/-18 °C) |
| Cell working temperature (°C) | (-40/+65) °C |
| Cooling Output (W) | 10263 / 3624 Watts |
| Power Consumption (W) | 5000 Watts |
| Power Cable | 2 Meter Length |
| Compressor Type | Ventilated Monoblock |
| Condensate Evaporation | Condensate water evaporation by means of anti-corrosion coil in low carbon AISI 316. |
| Refrigerant Gas | R455a |
| Refrigerant Charge (kg) | 1.930 kg |
| Defrost Type | Hot Gas |
| Energy Class | A |
| Climate Class | 5 (+40°C / 40% R.H.) |
| Energy consumption (kWh/kg) | 0.101 / 0.381 |
| Global Warming Potential (GWP) | 2141 |
| Internal Material | AISI 304 Stainless Steel |
| External Material | AISI 304 Stainless Steel |
| Internal Corners | Rounded corners inside for easy and optimal cleaning. |
| Insulation Thickness (MM) | 60mm |
| Insulation Material | HFO Polyurethane (No CFC, no HCFC) |
| Door Seal Construction | Easily removed, seven chamber magnetic seal. |
| Door Hinge Construction | Standard Left, non-Reversible |
| Controller Construction | 7” capacitive touch screen |
| Alarm | Visual And Audible |
| Noise (DB) | <70 |
| Voltage | 400 Volts |
| Amperage | 7.6 Amps |
| Plug Supplied | No |
| Temperature | (-40/+10) °C |
| Tray Capacity | 15 x 600x400 Trays |
| Packaging Width | 850 |
| Packaging Height | 2000 |
| Packaging Depth | 900 |
| Width (mm) | 820 |
| Depth (mm) | 860 |
| Height (mm) | 1820 |
| Warranty | 2 years |
| Inclusions | 1 x 600 x 400 Stainless Steel Rack Wi-Fi kit Core probe Germicidal UV lamps for internal cell sterilisation USB connector for data download in compliance with HACCP regulations Removable impurity filter Removable top panel Diamond-patterned bottom with drainage hole |
| SKU | PBCG156HG-1 |
| Dimensions | 820(W) x 860(D) x 1820(H) mm |
| Power | 400 Volts |
| Capacity | Tray Capacity: 15 x 600x400 Trays |
| Warranty | 2 YEARS |
