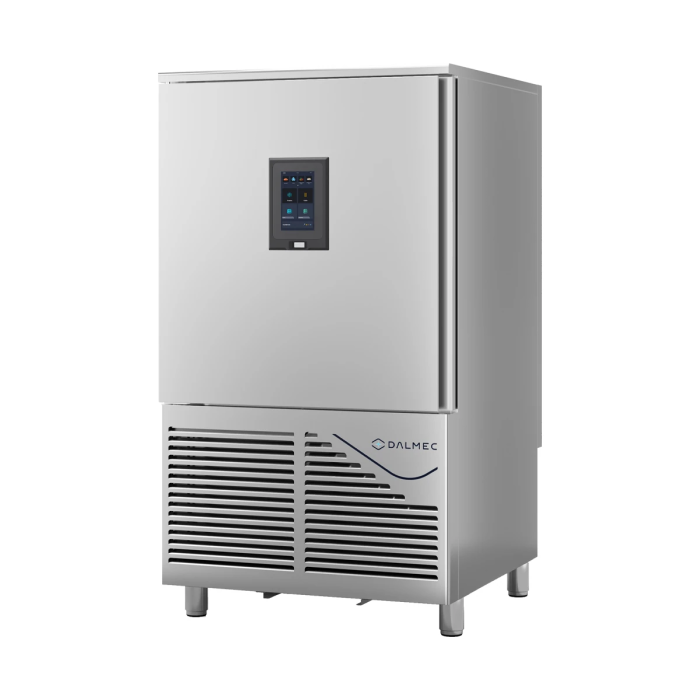

Dalmec 10 Tray Blast Freezer – 40 kg Capacity
Special Price $14,036.00 $12,760.00 Regular Price $15,950.00 $14,500.00 SAVE $1,914.00 SAVE $1,740.00
Dalmec
Dalmec manufactures professional refrigeration for foodservice, bakery, pastry, gelato and pizza production, including blast chillers, retarder provers, cabinets and refrigerated counters.
See all Dalmec productsDalmec 10 Tray Blast Freezer – 40 kg Capacity is a blast chillers from Dalmec for professional foodservice applications. Model: PBCG106HG.
Features
Climate Class 5 Manual Defrost Adjustable Ventilation R455a Cooling Gas AISI 304 Stainless Steel AISI 304 Adjustable S/S Feet 60mm Insulation Thickness Touch Screen Wi-Fi Water Drain INOX Grids Removable Condenser Filter Internal Sterilization
Product Specifications
| Model | PBCG106HG |
|---|---|
| Gross Volume | 175 Litres |
| Net / Gross Weight | 188 / 204kg |
| Chilling performance (kg) | 40kg (+90 °C/+3 °C) |
| Chilling cycle time (min) | 99 min (+65 °C/+10 °C) |
| Freezing performance (kg) | 30 kg (+90 °C/-18 °C) |
| Freezing cycle time (min) | 273 min (+65 °C/-18 °C) |
| Cell working temperature (°C) | (-40/+65) °C |
| Cooling Output (W) | 6073 / 2124 Watts |
| Power Consumption (W) | 3300 Watts |
| Power Cable | 2 Meter Length |
| Compressor Type | Ventilated Monoblock |
| Condensate Evaporation | Condensate water evaporation by means of anti-corrosion coil in low carbon AISI 316. |
| Refrigerant Gas | R455a |
| Refrigerant Charge (kg) | 1.660 kg |
| Defrost Type | Hot Gas |
| Energy Class | A |
| Climate Class | 5 (+40°C / 40% R.H.) |
| Energy consumption (kWh/kg) | 0.101 / 0.381 |
| Global Warming Potential (GWP) | 2141 |
| Internal Material | AISI 304 Stainless Steel |
| External Material | AISI 304 Stainless Steel |
| Internal Corners | Rounded corners inside for easy and optimal cleaning. |
| Insulation Thickness (MM) | 60mm |
| Insulation Material | HFO Polyurethane (No CFC, no HCFC) |
| Door Seal Construction | Easily removed, seven chamber magnetic seal. |
| Door Hinge Construction | Standard Left, non-Reversible |
| Controller Construction | 7” capacitive touch screen |
| Alarm | Visual And Audible |
| Noise (DB) | <70 |
| Voltage | 400 Volts |
| Amperage | 6.3 Amps |
| Plug Supplied | No |
| Temperature | (-40/+10) °C |
| Tray Capacity | 10 x 600x400 Trays |
| Packaging Width | 850 |
| Packaging Height | 1650 |
| Packaging Depth | 900 |
| Width (mm) | 820 |
| Depth (mm) | 860 |
| Height (mm) | 1470 |
| Warranty | 2 years |
| Inclusions | 1 x 600 x 400 Stainless Steel Rack Wi-Fi kit Core probe Germicidal UV lamps for internal cell sterilisation USB connector for data download in compliance with HACCP regulations Removable impurity filter Removable top panel Diamond-patterned bottom with drainage hole |
| SKU | PBCG106HG-1 |
| Dimensions | 820(W) x 860(D) x 1470(H) mm |
| Power | 400 Volts |
| Capacity | Tray Capacity: 10 x 600x400 Trays |
| Warranty | 2 YEARS |
