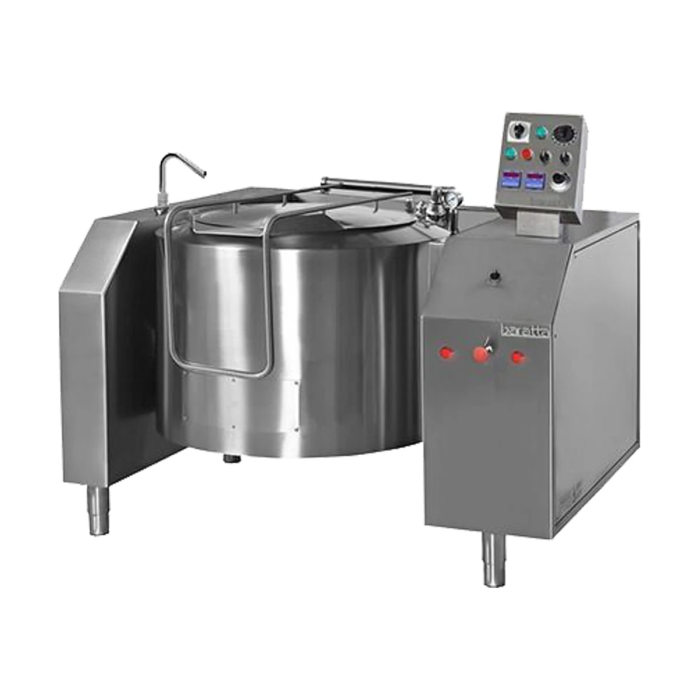

Baratta PEIME-600 620-Litre Electric Jacketed Boiling Pans – Tilting Tank – Auto Mixing – Manual Controls

Product Overview

The Baratta PEIME-500 Electric Jacketed Steam Kettle with auto Mixer exemplifies advanced engineering and durable construction, perfectly tailored for the rigorous demands of professional kitchens and food processing facilities. Built for intensive use, it features robust construction entirely from AISI 304 stainless steel, while the jacketed tank is crafted from heavy-gauge, marine-grade AISI 316 stainless steel, making it suitable for even acidic products. The lid, also made of AISI 304 stainless steel, is completely motorized with a special device that balances the weight, facilitating easy opening. This design is further enhanced by best-in-class insulation layers that limit heat loss while optimizing consumption and yield, along with a large, thick-rayed bottom base that ensures optimal thermal efficiency and long-lasting durability. The quality of materials and construction guarantees longevity and meets the highest hygiene standards, making washing and sanitization easy.

The PEIME-500 boasts an indirect electric heating system powered by 43.2 kW armored heating elements, which heat the water in the jacketed wall cavity. This heated water generates steam that gently transfers heat to the product being cooked, ensuring even distribution across the entire surface of the 510-liter tank, minimizing the risk of food sticking and resulting in perfect cooking outcomes.

The water jacket includes a safety valve and manometer to monitor and regulate pressure levels, ensuring optimal operation and safety. The cavity features a pressure gauge set to 0.45 bar, and an automatic cavity water loading system maintains correct water levels, eliminating the risk of running dry and preventing potential damage.

Temperature control is precise, featuring an electronic thermostat with a core temperature probe that allows for accurate regulation within a range of 30°C to 105°C. The control and safety thermostat, located beneath the tank, ensures both safety and accuracy. This controlled indirect temperature method, combined with mixing, enables the preparation of various products without adhering to the bottom and without requiring user intervention.

This indirect cooking method is further enhanced by mixing arms equipped with food-grade Teflon scrapers on both the bottom and sides of the tank, ensuring thorough mixing and preventing food adhesion. The heavy-duty AISI 316 marine-grade stainless steel mixing arms feature adjustable speeds and the ability to reverse, allowing the product to be cooked and mixed without operator intervention. Once the data is set on the control panel, the machine autonomously executes the entire cooking cycle, alerting users with an acoustic signal at the end of the process.

The PEIME-500 features an electric tilting mechanism powered by a robust gear motor, enabling effortless emptying of the tank while minimizing manual effort. Its heavy-gauge stainless steel lid is also motorized, utilizing a gear motor and two-hand safety controls for easy lifting. With an IP54 water protection rating, the kettle is well-protected against dust and water splashes, making it ideal for various kitchen environments. Additionally, electronic phase control, complete with a safety lamp, alerts users to any electrical phase issues, providing an added layer of safety.

The PEIME series is equipped with a durable control panel featuring electromechanical components that facilitate precise and flexible programming. Strategically located above the unit, the panel allows for easy cleaning and safe sanitization. This design ensures that cooking can be repeated continuously and autonomously, enhancing the efficiency and reliability of the cooking process.

The PEIME offers a variety of options, including the installation of a quick drain valve upon request. The DIN50 connection allows the kettle to be connected to a container, packaging machine, or transfer pump, enhancing its versatility in various applications.

With over 40 years of industry experience, Baratta’s technological expertise is evident in the PEIME-500. The company’s commitment to continuous research and innovation ensures that their equipment not only meets but exceeds current standards for strength, functionality, and ease of maintenance. Baratta’s dedication to quality and reliability is reflected in thousands of successful installations across diverse settings, reinforcing their position as a leader in providing high-quality solutions for professional kitchens and food processing operations.
