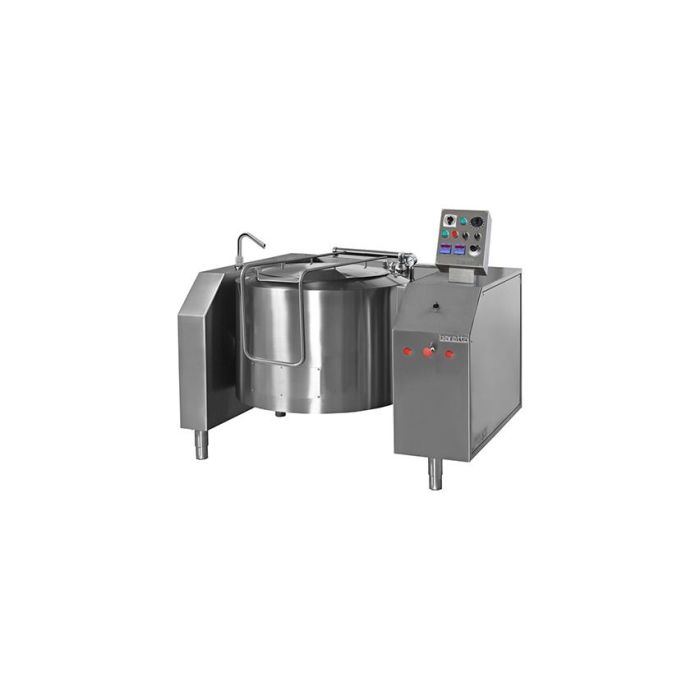

Baratta PEIME-330 Electric 330 litre Mixing Jacketed Kettle with Auto Mixing | Auto tilt - 453116130

The Baratta PEIME-330 Electric Jacketed Steam Kettle with auto Mixer exemplifies advanced engineering and durable construction, perfectly tailored for the rigorous demands of professional kitchens and food processing facilities. Built for intensive use, it features robust construction entirely from AISI 304 stainless steel, while the jacketed tank is crafted from heavy-gauge, marine-grade AISI 316 stainless steel, making it suitable for even acidic products. The lid is also made of AISI 304 stainless steel and includes a special device that balances the weight, and is completely motorised 0facilitating easy opening. This design is further enhanced by best-in-class insulation layers that limit heat loss while optimizing consumption and yield, along with a large, thick-rayed bottom base that ensures optimal thermal efficiency and long-lasting durability. The quality of materials and construction guarantees longevity and meets the highest hygiene standards, making washing and sanitization easy.

The PEIME-330 boasts an indirect electric heating system powered by 37.2 kW armored heating elements, heating the water in the jacketed wall cavity. This heated water generates steam that gently transfers heat to the product being cooked, ensuring even distribution across the entire surface of the 330-liter tank, minimizing the risk of food sticking and resulting in perfect cooking outcomes.

The water jacket includes a safety valve and manometer to monitor and regulate pressure levels, ensuring optimal operation and safety. The cavity features a pressure gauge set to 0.45 bar, and an automatic cavity water loading system maintains correct water levels, eliminating the risk of running dry and preventing potential damage.

Temperature control is precise, featuring an electronic thermostat with a core temperature probe that allows for accurate regulation within a range of 30��C to 105��C. The control and safety thermostat, located beneath the tank, ensures both safety and accuracy. This controlled indirect temperature control, combined with mixing, enables the preparation of various products without adhering to the bottom and without requiring user intervention.

This indirect cooking method is further enhanced by mixing arms equipped with food-grade Teflon scrapers on both the bottom and sides of the tank, ensuring thorough mixing and preventing food adhesion. The heavy-duty AISI 316 marine-grade stainless steel mixing arms feature adjustable speeds and the ability to reverse, allowing the product to be cooked and mixed without operator intervention. Once the data is set on the control panel, the machine autonomously executes the entire cooking cycle, alerting users with an acoustic signal at the end of the process.

The PEIME-330 features an electric tilting mechanism powered by a robust gear motor, enabling effortless emptying of the tank while minimizing manual effort. Its heavy-gauge stainless steel lid is also motorized, utilizing a gear motor and two-hand safety controls for easy lifting. With an IP54 water protection rating, the kettle is well-protected against dust and water splashes, making it ideal for various kitchen environments. Additionally, electronic phase control, complete with a safety lamp, alerts users to any electrical phase issues, providing an added layer of safety.

The PEIME series is equipped with a durable control panel featuring electromechanical components that facilitate precise and flexible programming. Strategically located above the unit, the panel allows for easy cleaning and safe sanitization. This design ensures that cooking can be repeated continuously and autonomously, enhancing the efficiency and reliability of the cooking process.

The PEIME offers a variety of options, including the installation of a quick drain valve upon request. The DIN50 connection allows the kettle to be connected to a container, packaging machine, or transfer pump, enhancing its versatility in various applications.

With over 40 years of industry experience, Baratta���s technological expertise is evident in the PEIME-330. The company���s commitment to continuous research and innovation ensures that their equipment not only meets but exceeds current standards for strength, functionality, and ease of maintenance. Baratta���s dedication to quality and reliability is reflected in thousands of successful installations across diverse settings, reinforcing their position as a leader in providing high-quality solutions for professional kitchens and food processing operations.

• Heavy-duty robust construction made entirely from AISI 304 stainless steel, designed for intensive use and guaranteed longevity.
• 330 litre Jacketed tank constructed from heavy-gauge, marine-grade AISI 316 stainless steel, making it suitable for acidic products.
• Thick-rayed bottom base design enhances thermal efficiency and stability, ensuring optimal heat distribution and durability during intensive use.
• AISI 304 heavy-gauge stainless steel lid is completely motorised lid and includes two-hand safety controls
• Electric tilting mechanism powered by a robust gear motor, enabling effortless emptying of the tank while minimizing manual effort.
• Heavy-duty marine-grade AISI 316 stainless steel mixing arms with food-grade Teflon scrapers, adjustable speeds, and reverse capabilities. These arms ensure thorough mixing, prevent food adhesion, and operate autonomously without user intervention.
• Quality materials and construction meet the highest hygiene standards, facilitating easy washing and sanitization.
• Best-in-class insulation layers limit heat loss, optimizing energy consumption and cooking yield.
• Indirect electric heating system powered by a 37.2kW armored heating elements heats the water in the jacketed wall cavity, generating steam for even heat distribution while minimizing food sticking, ensuring perfect cooking results.
• Water jacket equipped with a safety valve and manometer for monitoring pressure levels, with a pressure gauge set to 0.45 bar, ensuring optimal operation and safety.
• Automatic water loading system prevents the tank from running dry, safeguarding against potential damage.
• Electronic bottom temperature control with a safety level, providing precise regulation and added protection during operation.
• Core probe for precise control of product temperature during cooking, ensuring optimal results and consistent quality.
• Electronic thermostat regulates temperatures from 30��C to 105��C, ensuring precise control for optimal cooking of products.
• IP54 water protection rating safeguards the kettle against dust and water splashes, making it suitable for various kitchen environments.
• Includes a safety lamp to alert users to any electrical phase issues for enhanced safety.
• Durable electromechanical control panel allows precise programming of cooking functions and mixer arm rotations for flexible operation. Positioned above the unit, it ensures easy cleaning and safe sanitization, enhancing hygiene and usability.
• Once programmed, the kettle autonomously executes the cooking cycle, signaling completion with an acoustic alert.
• Quick drain valve installation available upon request; DIN50 connection allows for easy integration with containers, packaging machines, or transfer pumps.
• Backed by over 40 years of industry experience, Baratta continually innovates to exceed standards for strength, functionality, and maintenance, affirming its leadership in high-quality kitchen solutions.

Model

PEIME-330

Voltage

400/3+N/50

Watts

37.2kW

Plug Supplied

No

Litre Capacity

330L

Temperature

30��-105��

Tilt Type

Automatic

Tank Type

AISI 316 Stainless steel

Width (mm)

1770

Depth (mm)

1425

Height (mm)

1070

Warranty

2 years parts and labour
